Features
Offer all the popular soft serve variations from low or non-fat ice creams to
custards, yogurt and sorbet. Serve two separate soft serve flavors, or an equal
combination of both in a twist.
Freezing Cylinder
Two, 3.4 quart (3.2 liter).
Mix Hopper
Two, 14 quart (13.2 liter). Separate hopper refrigeration (SHR) maintains mix
below 41ºF (5ºC) during Auto and Standby modes.
Indicator Lights
Mix Low light alerts operator to add mix. Audible alarm may be enabled to
sound when mix is low.
Electronic Controls
SoftechTM is our exclusive microprocessor based master control that regulates
refrigeration by measuring product viscosity to maintain consistent quality.
Standby
During long no-use periods, the standby feature maintains safe product
temperatures in the mix hopper and freezing cylinder.

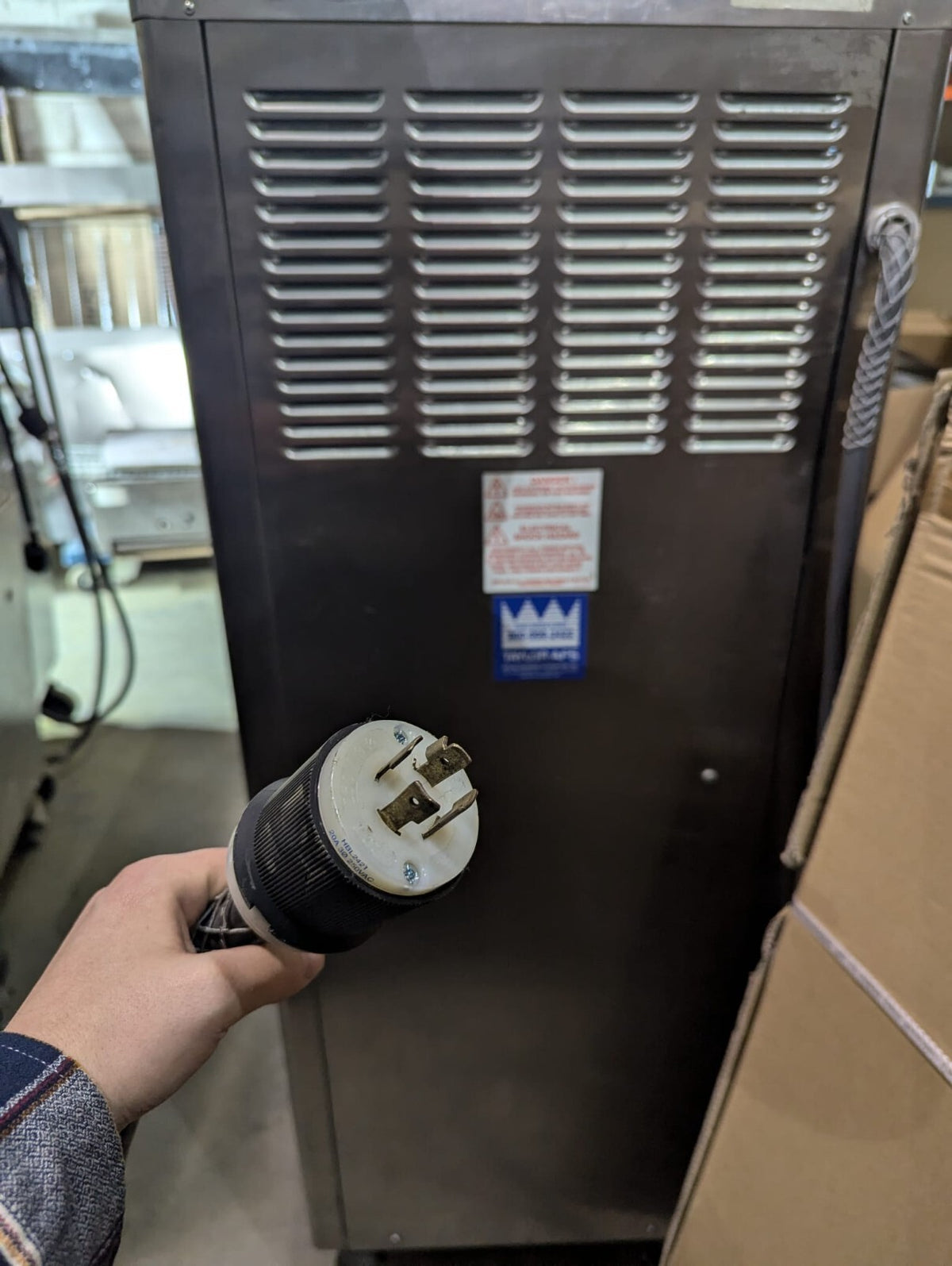

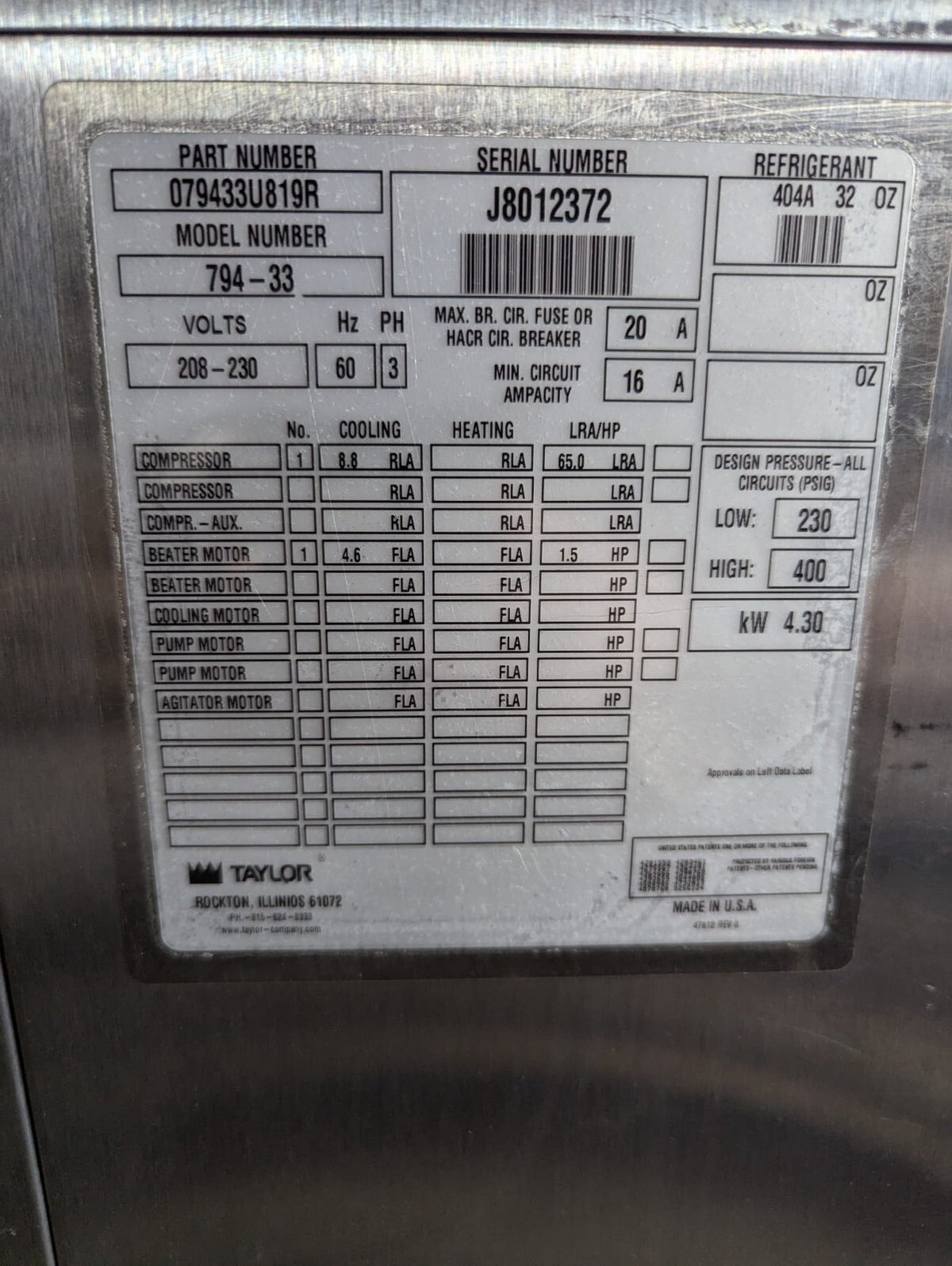

Electrical
Two dedicated electrical connections are required. See the Electrical chart
for the proper electrical requirements. Manufactured to be permanently
connected. Consult your local Taylor distributor for cord & receptacle
specifications as local codes allow.
Beater Motor
Two, 1.5 HP.
Refrigeration System
Two, 9,500 BTU/hr. R404A.
Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a.
(BTUs may vary depending on compressor used.)
208-230/60/3 Water
Water Cooled
Water inlet and drain connections under side of base 1/2” FPT.
