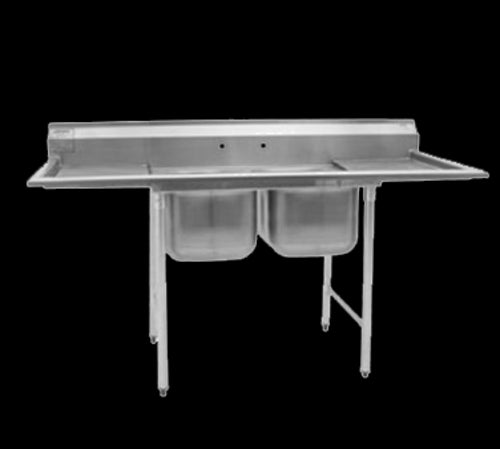

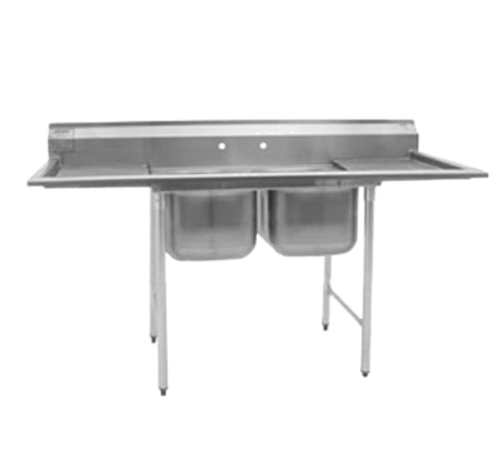

314 Series Sink, two compartment, 100"W x 31-3/4"D, 304 stainless steel construction, coved corners, 24" x 24" x 13-1/2" deep compartments, 24" drainboards on left & right, 9-1/2"H backsplash with 1" upturn & tile edge, 8" OC splash mount faucet holes, 2" euro-style edges on front & sides, 3-1/2" basket drains with 1-1/2" I.P.S drain outlets, galvanized legs & side crossrails, adjustable bullet feet, NSF (FLYER)
Specification:
- Base Construction: galvanized
- Base Type: legs with side crossrails
- Brand: Eagle Group
- Compartment (front - back): 24"
- Compartment Width (side - side): 24"
- Dimensions: 44" (H) x 100" (W) x 31.75" (D)
- Drainboards: with left & right-hand drainboards
- Model: 314-24-2-24-X
- Overall Length: 91" - 135"
- Sink Depth (rim - drain): 13"
- Splash Height: 9-1/2"
- Top Gauge: gauge unspecified
- Top Stainless Series: 300 series
Certificates:
- NSF
